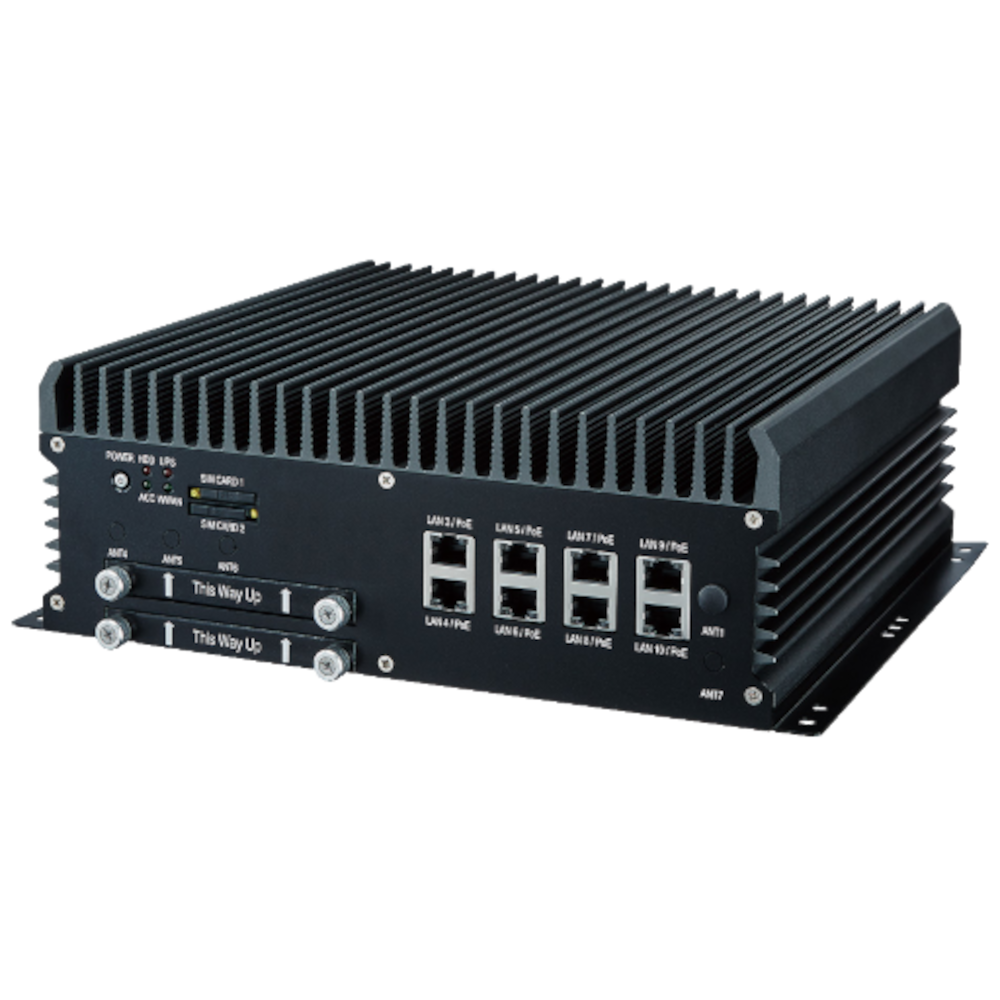

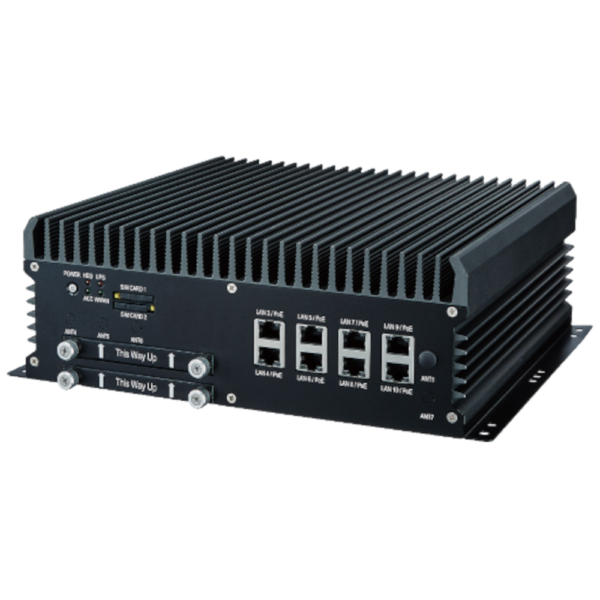

CQ70 Fanless Vehicle PC CQ70 Fanless Vehicle PC

CQ70 Fanless Vehicle PC

Being slightly bigger than our previous flagship series (CQ60G), the new king
– the CQ70G and CQ70N series – delivers an even greater amount of processing horse-power.
With its powerful 6-core Intel Core i7-8700T CPU and full-sized NVidia GTX1060 GPU (CQ77G ONLY),
this platform can handle the most demanding of workloads in an impressively
discrete form factor (<6.6 litres).

Description

Being slightly bigger than our previous flagship series (CQ60G), the new king
– the CQ70G and CQ70N vehicle PC series – delivers an even greater amount of processing horse-power.
With its powerful 6-core Intel Core i7-8700T CPU and full-sized NVidia GTX1060 GPU (CQ77G ONLY),
this platform can handle the most demanding of workloads in an impressively
discrete form factor (<6.6 litres).

As with all our PCs, numerous built-in options are available, including GPS, Wi-Fi, video capture and
CAN-bus. The fanless nature of the CQ70 series makes it suitable for extremely dusty environments,
and the device’s ruggedness is demonstrated by multiple MIL-STD-810G tests. The CQ70 series is
E-mark certified making it fully approved for in-vehicle use. A 2-year warranty is standard, extendable
to 3 or 5 years.

  • Intel Core i7-8700T processor (6 core, 12 threads, up to 2.4 GHz, PassMark score >12648)
  • NVIDIA GeForce GTX 1060 Ti GPU (CQ77G Only) supporting 1280 CUDA cores
  • Up to 32 GB DDR4 RAM
  • Dual removable 2.5″ SSDs (each up to 2 TB) with RAID support
  • Internal (non-removable) mSATA SSD (CQ60G only)
  • 4 x independent HDMI outputs  (3 x DisplayPort )
  • Optional internal 4G, GPS (DR), WLAN, Bluetooth, CAN & video capture modules
  • supports up to 2 internal cellular (4G / LTE) modems, all with easily accessible SIM card slots
  • Optional 8 x digital inputs and 4 x digital outputs (supporting relay switching)
  • Optional internal backup battery (UPS) providing approx. 10 minutes of operation with no external power

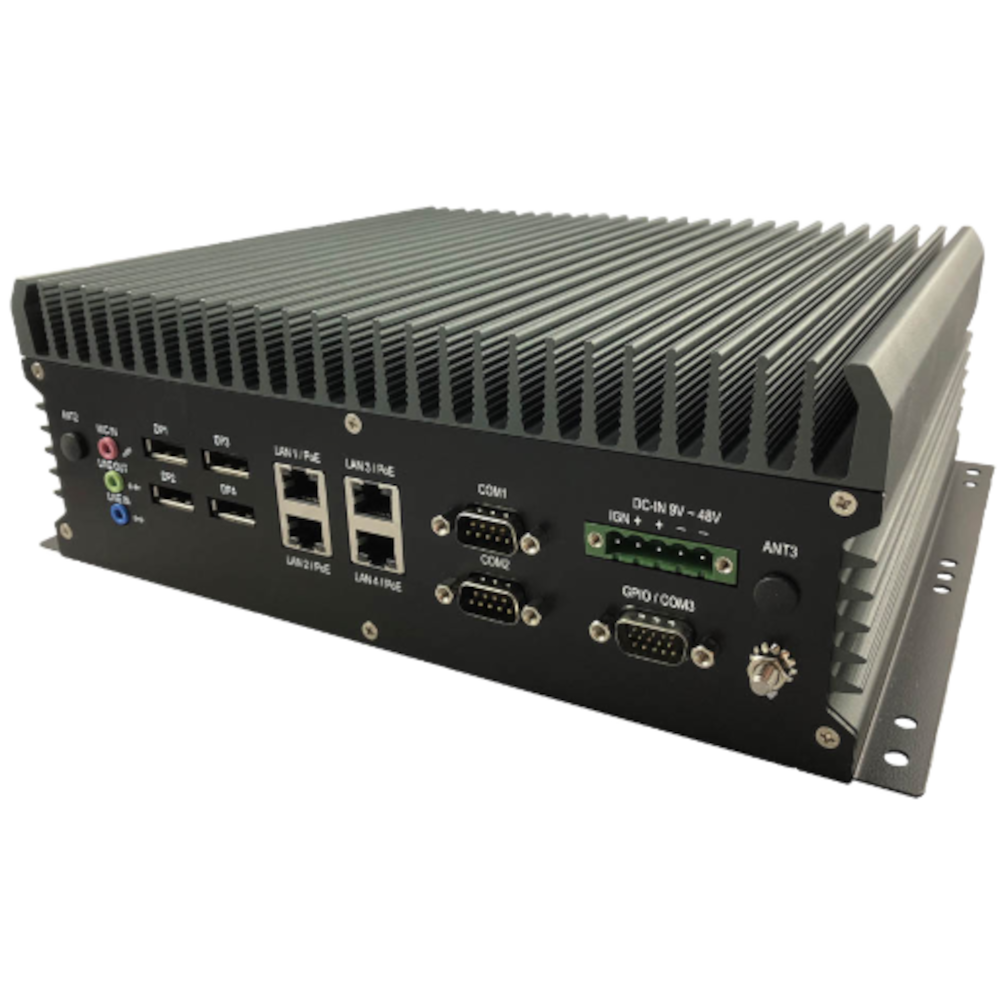

  • 4 x USB 3.0 ports
  • Up to 3 x RS-232 ports
  • Up to 10 x GbE LAN ports – with optional Power over Ethernet (PoE) on all 8 ports
  • Auto on/off with vehicle ignition, configurable shut down delays via software, low battery detection
  • 9-48V peak input voltage range (9-48V for CQ77G)
  • E11 certified (all configurations) – fully approved for automotive use
  • -40°C to +60°C operating temperature range (at base specification with extended temperature RAM & SSD)
  • MIL-STD-810G tests for shock & vibration
  • 2-year RTB warranty (extendable to 3 or 5 years)
  • Long-term availability



Dimensions

Width: 290 mm
Depth: 250 mm
Height: 90 mm

Weight: 4.8 Kg (base specification)

CQ70 Datasheet
